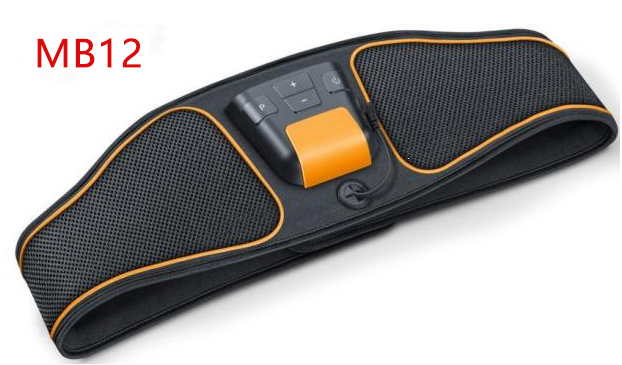

MB12 belt basic parameters:

The output waveform of the product is generated by a certain amplitude and frequency of the host through the silicone belt

It acts on the human body and has the functions of muscle stimulation, pain treatment and so on.

1. Voltage range: 3.6-4.5vdc

2. Operating current: no more than 30mA

3. Standby current: less than 10uA

4. Output voltage amplitude: no load: less than 100VDC

With load: no more than 75Vdc (load 500 Ω)

5. Load detection: the 620k resistance should be judged as loaded; No load is judged when 2m resistance is connected.

6. Power supply: 3 AAA alkaline batteries (3x1.5v = 4.5V)
