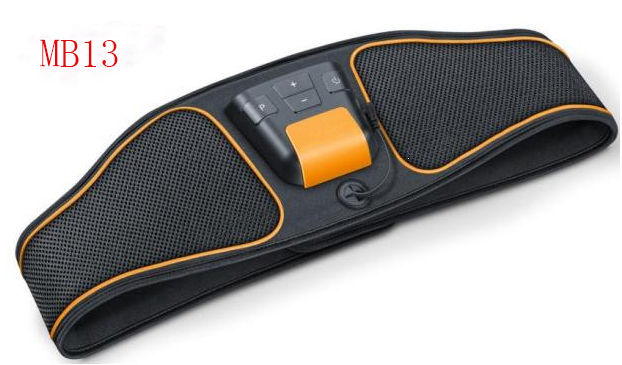

Mb13 belt basic parameters:

The output waveform of the product is generated by a certain amplitude and frequency of the host through the silicone belt

It acts on the human body and has the functions of muscle stimulation, pain treatment and so on.

1. Power supply: 3 AAA alkaline batteries (3x1.5v = 4.5V)

2. Power supply range: 3.0-5.0 VDC

3. Starting current: no more than 3.5ma

4. Treatment current: no more than 65mA

5. Shutdown current: no more than 10uA

6. Output channel: 1 channel

7. Output strength: level 0-40

8. Frequency range: 30-80hz

9. Pulse width: 200us / phase
